Category: Mechanical Seal Replacement
Explore mechanical seal replacement options for Flowserve, John Crane and Burgmann equipment, with a checklist for dimensions, materials and operating duty.
Find replacement seal information by brand
Use these articles as starting points when identifying an existing seal. A brand name or similar appearance alone does not confirm interchangeability.

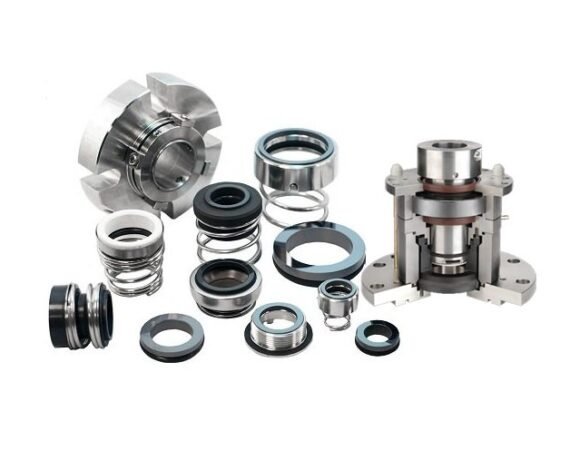

• Flowserve replacement seals — start with the original seal designation and equipment model, then compare the proposed replacement against the assembly drawing.

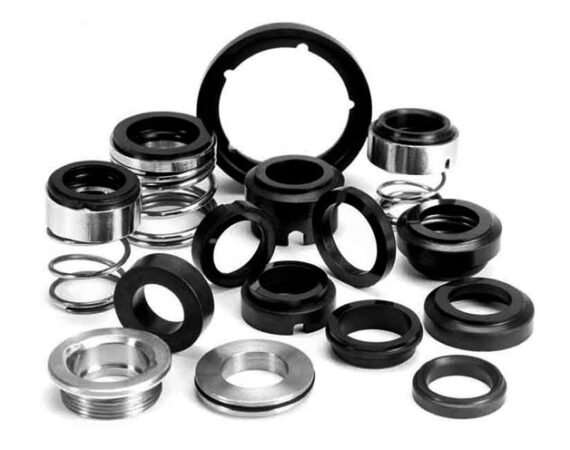

• John Crane replacement seals — identify the seal type and size before checking the installation dimensions and material specification.

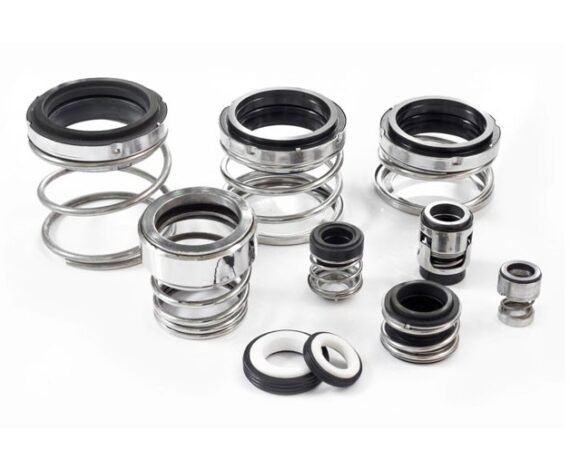

• Burgmann replacement seals — record the original reference, including any suffixes, and confirm the stationary seat and rotating assembly dimensions.
What to check before choosing a replacement
• Equipment and installation: pump or mixer manufacturer, model, shaft or sleeve diameter, seal chamber dimensions, working length and gland arrangement.
• Seal configuration: component or cartridge construction, single or dual arrangement, rotation requirements and existing flush or support connections.
• Operating conditions: process liquid, solids content, temperature, pressure at the seal and shaft speed. Include normal duty and relevant start-up or cleaning conditions.
• Materials: seal face pair, elastomers and metal components must be suitable for the process and operating conditions. Do not infer the material grade from a photograph.
Prepare a replacement enquiry
Gather the original seal reference, equipment nameplate, dimensional drawing, clear photographs and required quantity. If a drawing is unavailable, identify which measurements are confirmed and which still need checking. Describe the existing leakage or damage so the replacement review can consider the cause of failure as well as fit.
Contact Dean Fluid with your seal details for a replacement enquiry, or browse our mechanical seal products. Final suitability should be checked against the equipment documentation and the proposed seal specification before ordering or installation.
Can a matching shaft size confirm compatibility?
No. Seals with the same shaft size can have different working lengths, seats, gland connections and operating limits. Review the complete assembly and duty, rather than selecting by diameter alone.
For more background, see our mechanical seal and piping plan introduction and mechanical seal maintenance article. Brand names are used for identification and do not by themselves establish OEM origin, affiliation or replacement compatibility.
