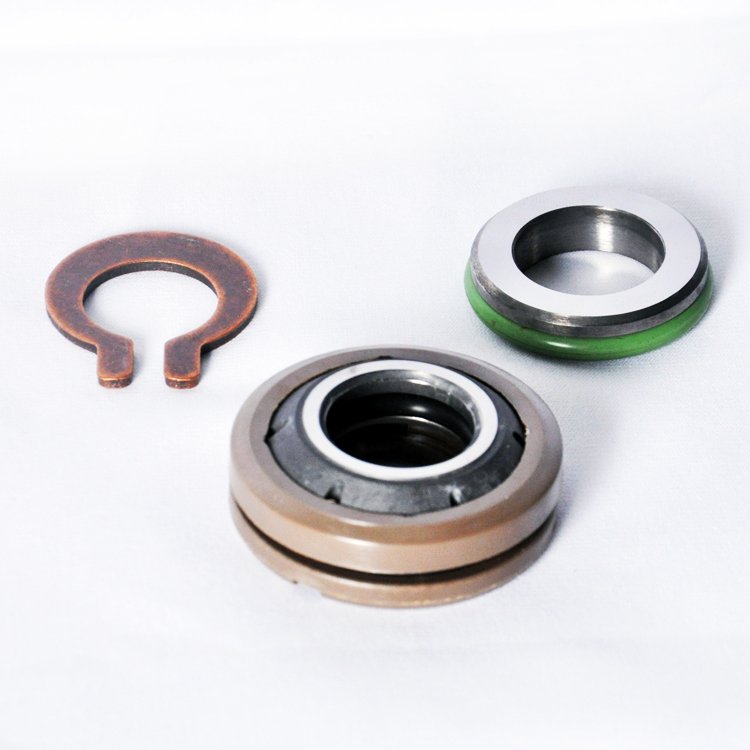

Flygt 3085 pump mechanical seal replacement front viewFlygt 3085 pump mechanical seal replacement front view

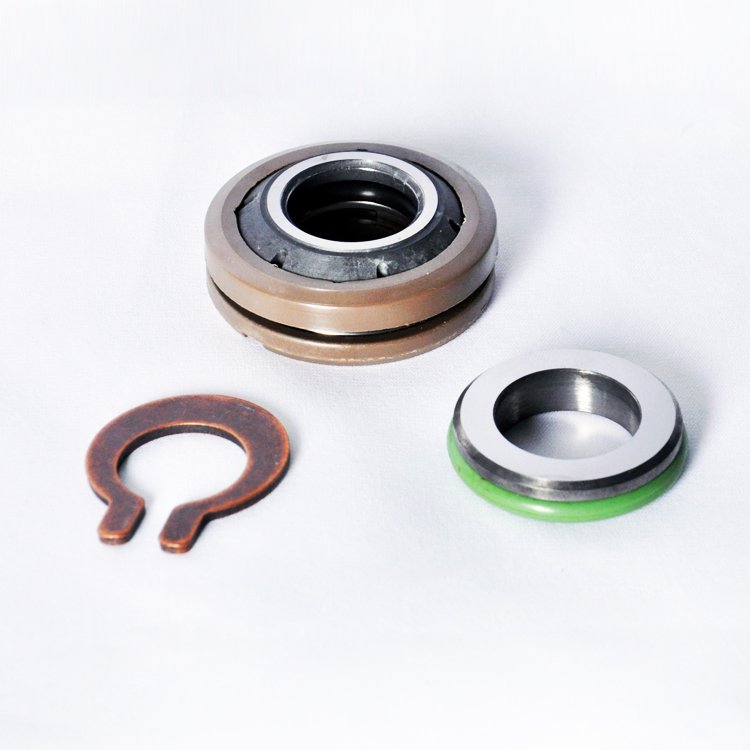

Flygt 3085 pump mechanical seal replacement left viewFlygt 3085 pump mechanical seal replacement left view
Flygt 3085 pump mechanical seal replacement right viewFlygt 3085 pump mechanical seal replacement right view

Flygt 3085 pump mechanical seal replacement

  • Non-catridge seal, used in flygt pump for water pump maintenance
Facebook
Twitter
LinkedIn

Description:

Non-cartridge type,Multiple spring design, unbalanced seal

Operating Limits:

  • Temperature:-10-120℃
  • Speed: 10m/s
  • Pressure: 12bar
  • Standard size: 25mm, 35mm

Materials:

  • Seal ring: Car,Sic,Ssic,TC
  • Secondary seal: NBR,EPDM,Viton etc.
  • Spring and metal parts:304,316,HAST.C
Flygt 3085 pump mechanical seal replacement right view
Flygt 3085 pump mechanical seal replacement left view
Flygt 3085 pump mechanical seal replacement front view

Some others you may like

3085 Seal Matching Beyond the Model Number

The 3085 model name is a starting point for replacement, not a complete fit specification. This page lists 25 mm and 35 mm sizes. Send the shaft diameter, stationary-seat measurements and fitting length so your enquiry can be checked against the seal removed from your pump.

Face and Elastomer Choices Considered Together

A seal face choice alone does not define the replacement. The listed carbon, silicon carbide and tungsten carbide options need to be considered alongside the secondary seals and metal parts. Include the pumped liquid, solids content and operating temperature when discussing a material combination.

Installation Details for a Non-Cartridge Seal

This replacement uses a non-cartridge, multiple-spring arrangement. During maintenance, check the shaft or sleeve, seat recess and installed working length against the pump documentation. Keeping these dimensions in the enquiry helps distinguish a fit issue from wear in the removed seal.

A Repair Enquiry Built Around Your Removed Seal

Clear front and side photos, measured dimensions and any markings on the old seal give a replacement enquiry a practical reference. Add the pump identification, required quantity and visible damage. With these details together, the proposed seal configuration and supply scope are easier to review before ordering.
