M7N Mechanical Seal Replacement

M7N Seal Design and Replacement References

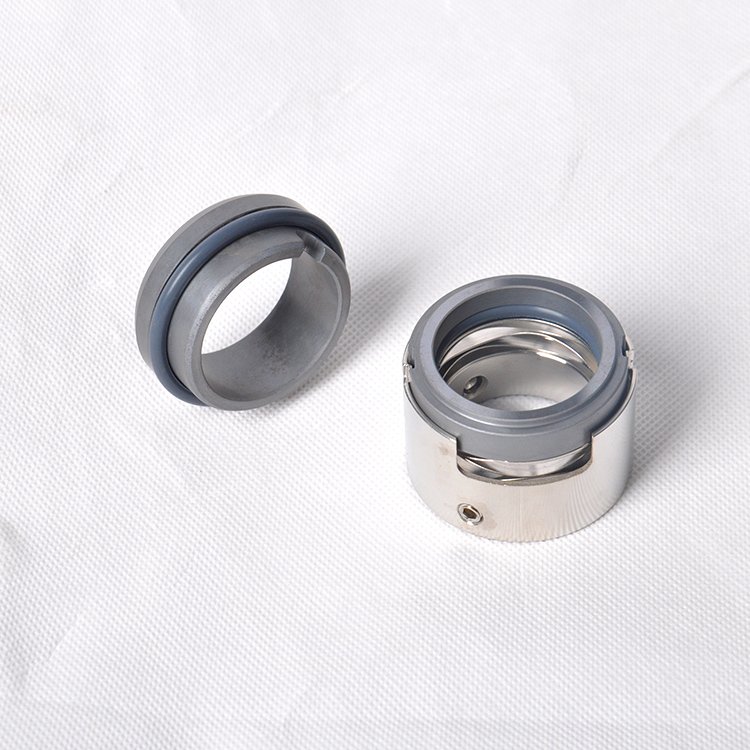

This M7N mechanical seal is an unbalanced, wave-spring component seal for industrial water pumps. Its design is independent of the direction of shaft rotation. The product is offered as a replacement reference for Burgmann M7N, Vulcan 1659S and AES M05S.

Model references are a starting point for selection. Confirm shaft diameter, working length, stationary seat dimensions and materials against the existing seal and pump drawing before ordering. The listed dimensional standard is EN 12756 (DIN 24960); the exact seat and installation dimensions must still be checked.

Sizes and Operating Limits

These are the published range limits, not a guarantee that all maximum values can be used together. Confirm the permitted duty for your fluid, temperature, pressure, speed and selected material combination.

Material Options

• Seal faces: carbon (Car), silicon carbide (SiC), sintered silicon carbide (SSiC) and tungsten carbide (TC).
• Secondary seals: NBR, EPDM, Viton and FFKM options.
• Spring and metal parts: 304, 316 and HAST.C options.

Specify the pumped liquid, concentration, solids and cleaning conditions so the face combination and elastomer can be checked for the actual service. The temperature range does not apply to every O-ring option.

How to Check the Replacement Size

1. Identify the pump model and the existing seal reference, including any suffix.
2. Measure the shaft or sleeve diameter at the seal position.
3. Compare the installed working length and available seal chamber space.

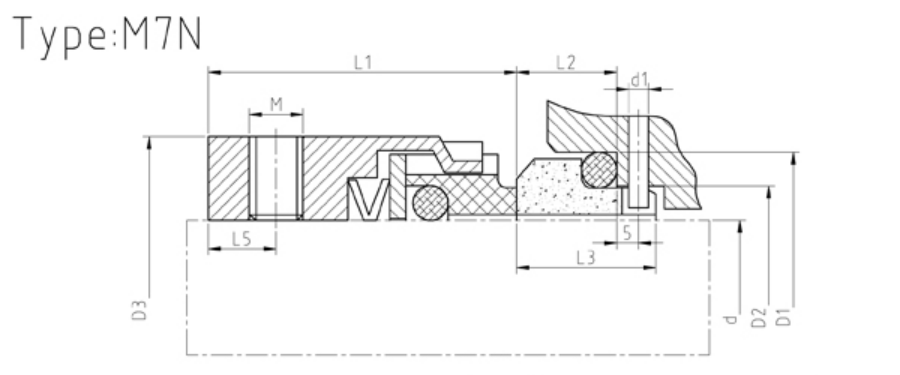

4. Check the stationary seat outside diameter, thickness and mounting arrangement using the drawing and size chart below.
5. Confirm the face materials, O-ring material and operating conditions before approving the replacement.

A matching shaft diameter alone does not establish interchangeability. Send clear photographs of the rotating assembly, stationary seat and markings if the original reference is uncertain.

M7N Mechanical Seal FAQs

Can this replace a Burgmann M7N seal?

It is offered for M7N replacement selection. Confirm the complete installation dimensions, stationary seat and material combination before ordering; the model name alone is insufficient.

What sizes are available?

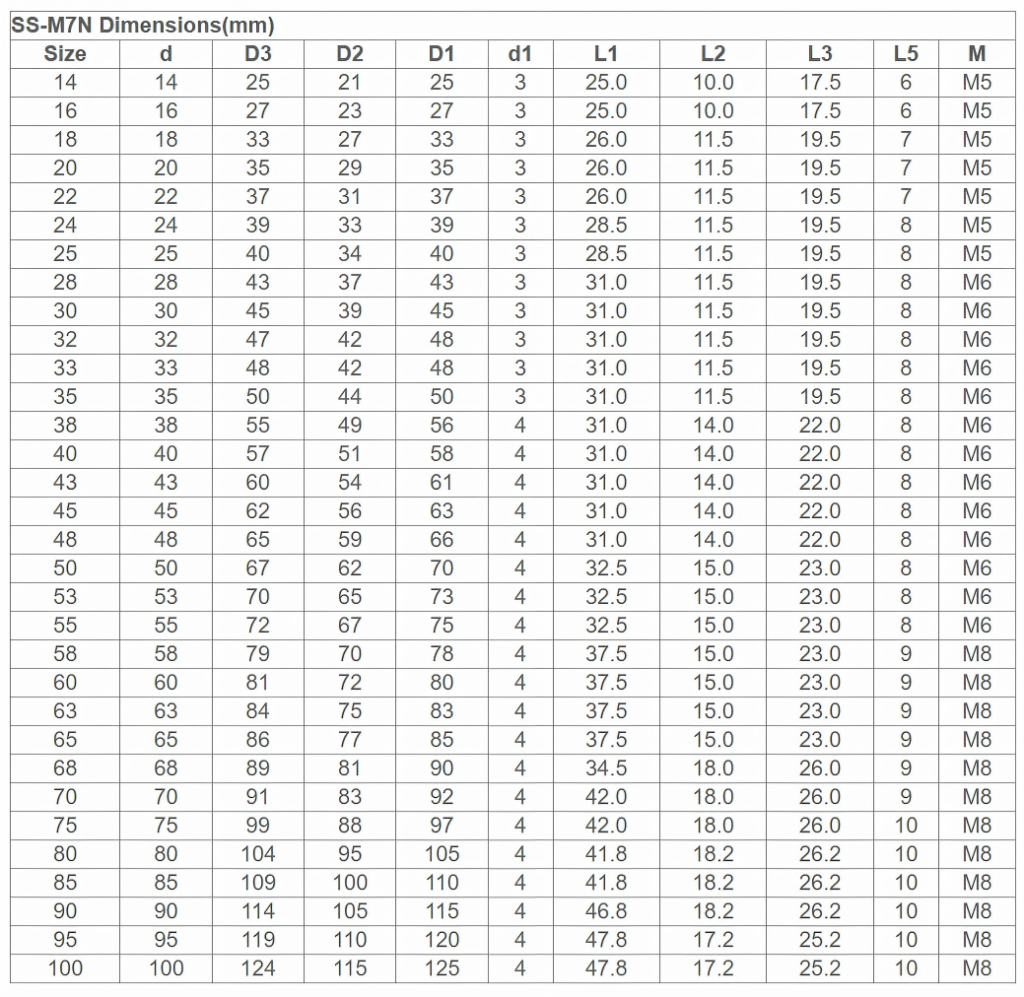

The listed shaft size range is 14–100 mm. Use the size chart below to identify the required configuration and request confirmation of the exact size and seat.

Can I use the maximum temperature and pressure together?

Do not assume so. The allowable combination depends on the liquid and selected materials. Provide the normal and maximum operating conditions for a duty check.

Request an M7N Seal Quotation

Send the seal reference, shaft size, dimensioned drawing or sample photos, required quantity, liquid, temperature, pressure and shaft speed through our contact page. Include your required face and O-ring materials if known.

For other configurations, browse pump mechanical seals or see the Burgmann replacement selection guide.
