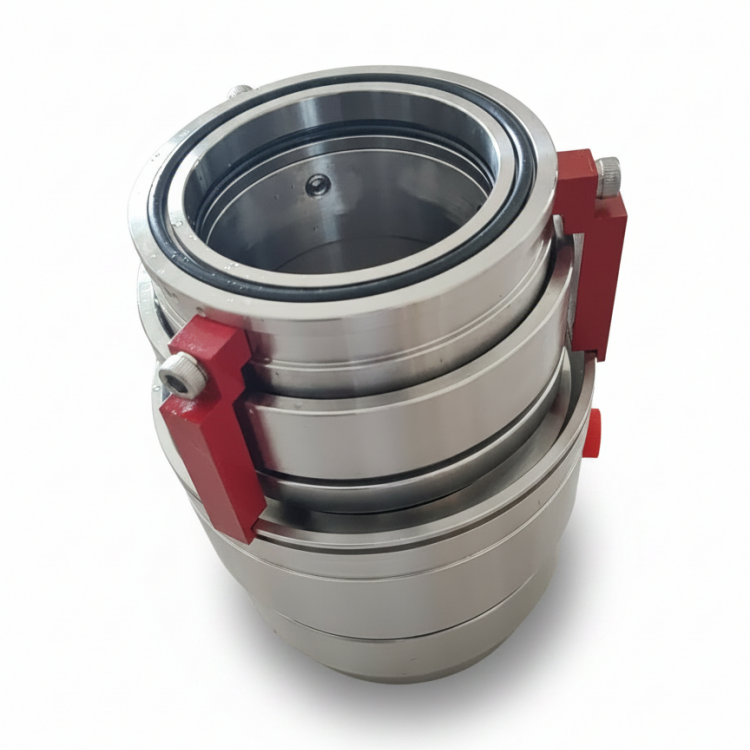

SE2-77-QRVG-304112SE2-77-QRVG-304112

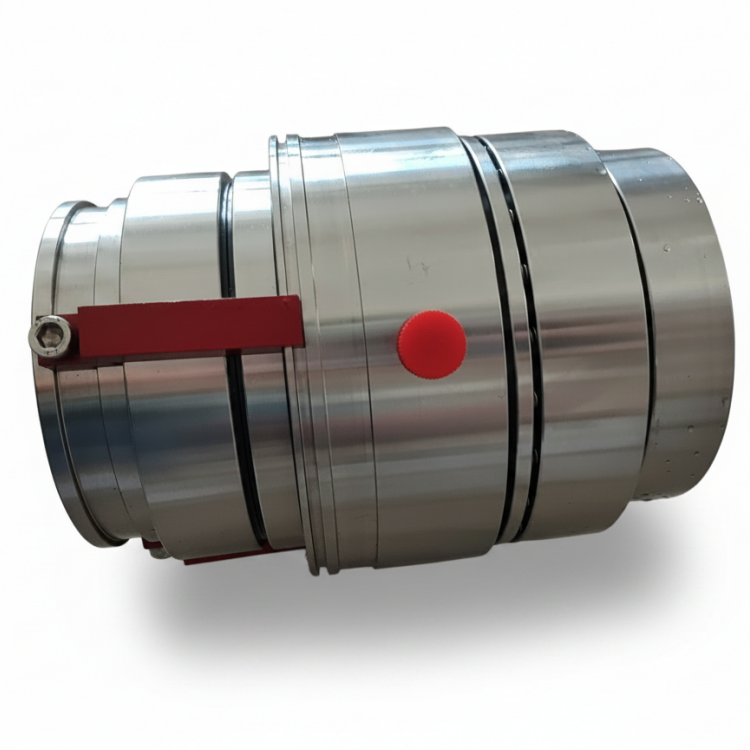

SE2-77-QRVG-304112 side viewSE2-77-QRVG-304112 side view

Safematic SE2-77 Cartridge Mechanical Seal for Sulzer APP APT Pulp and Paper Pumps

  • Equivalent to 77mm Safeseal SE2 double cartridge mechanical seal, used in Sulzer APP APT pumps and industrial water systems.
Facebook
Twitter
LinkedIn

Description:

Equivalent to John Crane Safeseal SE2-77 cartridge mechanical seal, used in Sulzer pulp pumps and water processing.

Operating Limits:

  • Shaft Diameter : 77 mm

  • Temperature Range: -20°C to +180°C (depending on elastomer selection)

  • Maximum Pressure:

    • Product Pressure: Up to 20 bar (2.0 MPa)

    • Barrier Pressure: Up to 25 bar (2.5 MPa)

  • Maximum Speed: Up to 20 m/s (approx. 5000 RPM)

Materials:

  • Seal Faces (Inner / Outer):

    • Silicon Carbide vs. Silicon Carbide (SiC / SiC) — Standard for abrasive/pulp applications

    • Carbon vs. Silicon Carbide (Car / SiC)

  • Secondary Seals (O-Rings): FKM (Viton), EPDM, PTFE, FFKM

  • Springs & Metal Components: Stainless Steel 316 (1.4404), Hastelloy C

SE2-77-QRVG-304112
SE2-77-QRVG-304112 side view

Some others you may like

SE2-77 Replacement Matched Beyond Shaft Size

A 77 mm shaft diameter is only the first fit check. For a Sulzer APP or APT pump, compare the existing cartridge sleeve, gland fixing pattern, axial space and pipe connections with the proposed SE2 replacement drawing. Supplying these details together makes it easier to identify a mounting mismatch before the pump is opened.

Barrier-Liquid Details Included in the Enquiry

The SE2 double cartridge arrangement needs a review of the supporting liquid system as well as the seal itself. Include the barrier liquid, available pressure, circulation method and connection layout in your enquiry. Review these against the actual seal-chamber duty; a listed maximum barrier pressure should never be used on its own as the operating setpoint.

Face and O-Ring Choices Based on the Pulp Duty

Two pumps using an SE2-77 cartridge may handle very different fluids. State the pulp consistency, abrasive content, process chemicals and cleaning temperature when discussing SiC/SiC or carbon/SiC faces and the listed secondary-seal options. This information gives the material review a practical basis instead of relying on the pump series alone.

Old-Cartridge Identification for a Clear Supply Scope

For an installed seal marked SE2-77-QRVG-304112, send a readable marking photo together with views of the gland, sleeve and liquid ports. Note whether the request is for a complete cartridge or selected replacement parts. Keeping the marking, dimensions and supply scope in one enquiry helps distinguish visible similarities from details that still require drawing confirmation.
