John Crane Type 2100 Replacement Mechanical Seal
Elastomer bellows replacement seal for John Crane Type 2100 water-pump applications. Listed nominal sizes: 10–100 mm. Confirm the working length, stationary seat and material combination before ordering.
Type 2100 Replacement Seal for Water Pumps

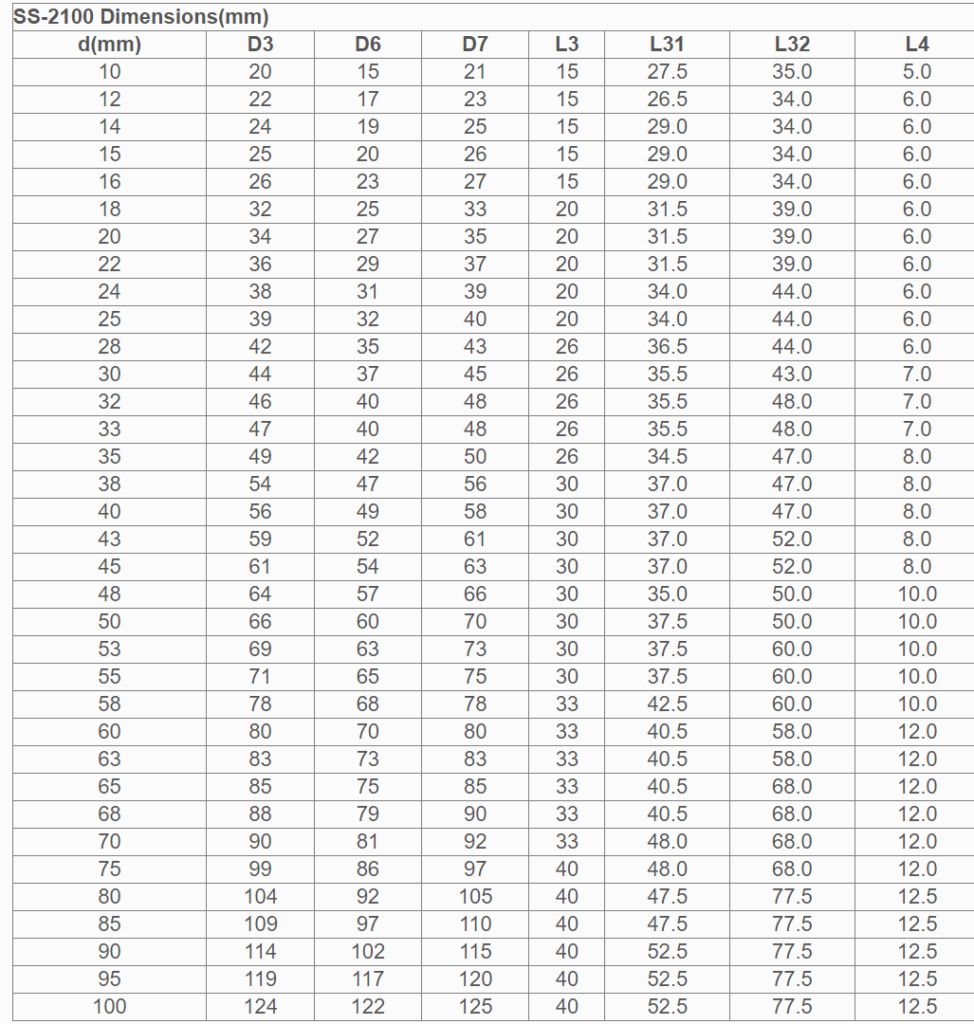

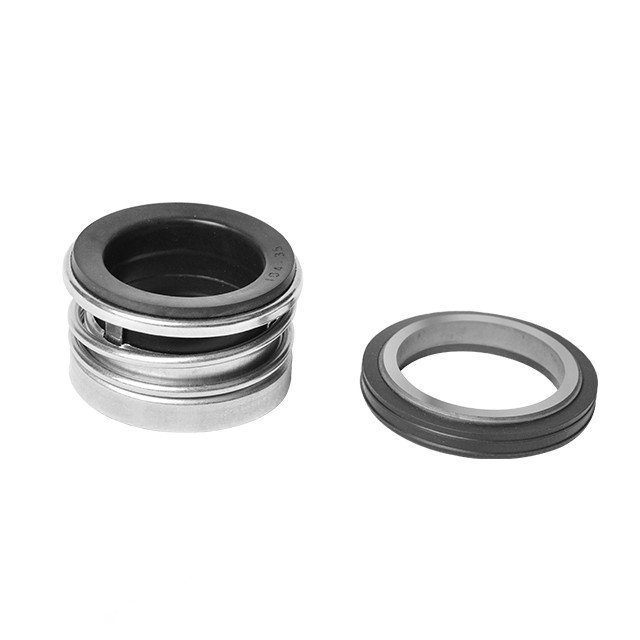

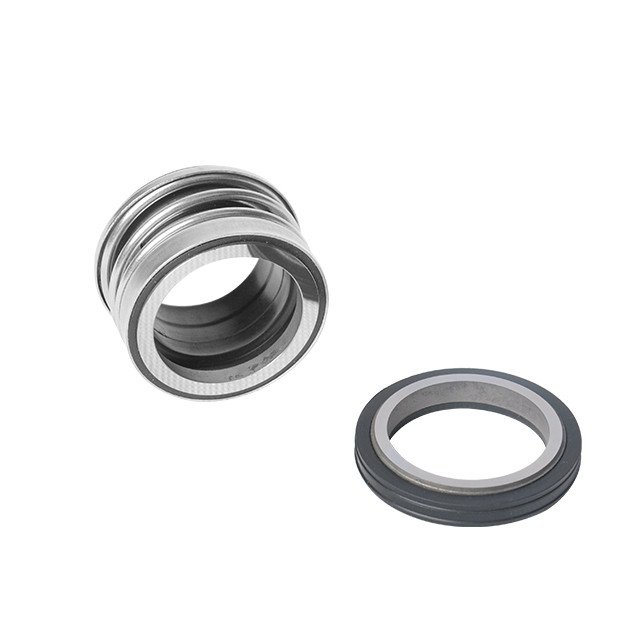

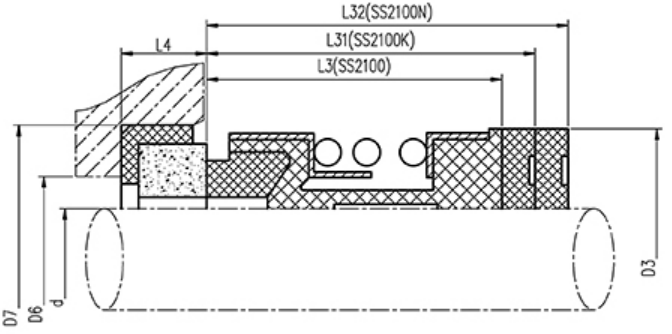

This elastomer bellows mechanical seal is offered as a replacement option for John Crane Type 2100 water-pump applications. Use the product photographs, drawing and size chart below to compare the rotating assembly and stationary seat with your existing seal. A model name or shaft diameter alone is not enough to confirm interchangeability.Operating Range and Materials
| Item | Listed specification |
|---|---|
| Temperature range | -20 to 120 °C |
| Sliding speed | Up to 15 m/s |
| Pressure | Up to 18 bar |
| Nominal size range | 10–100 mm; confirm the required size against the drawing |
| Seal face options | Carbon, silicon carbide (SiC/SSiC), tungsten carbide (TC) |
| Secondary seal options | NBR, EPDM, FKM (Viton) |
| Spring and metal parts | 304 or 316 stainless steel |
Dimensions to Check Before Ordering
- Shaft or sleeve diameter: measure the surface where the rotating seal is fitted.
- Installed working length: compare the required compressed assembly length with the pump drawing; do not substitute the free spring length.
- Stationary seat: check the seat outside diameter, thickness, mounting recess and secondary sealing arrangement.
- Available space: check the rotating assembly outside diameter and clearance within the seal chamber.
Type 2100 Fit Check: Record the Assembly, Not Just the Shaft Size
A replacement enquiry is easier to check when the rotating unit, stationary seat and pump recess are recorded separately. For this Type 2100 replacement, use the following worksheet alongside the drawing on this page. If a measurement is unavailable, mark it as unknown rather than choosing a value from a similar-looking seal.| Check point | What to record | Why it changes the selection |
|---|---|---|
| Shaft or sleeve | Measured diameter and whether the original drawing uses millimetres or inches. | A rounded conversion can hide a different nominal size. Keep the original units with the measurement. |
| Rotating unit | Working length, outside diameter and the position of the shoulder or other axial stop. | The available installation space must match the proposed assembly; a loose seal’s free length does not describe its installed position. |
| Stationary seat | Outside diameter, thickness, recess dimensions and a photograph of the secondary sealing arrangement. | A matching rotating unit does not by itself confirm that the seat will fit the pump housing. |
| Service conditions | Liquid, concentration, temperature, speed, seal-chamber pressure and existing material markings. | Dimensional fit and material suitability are separate checks. Record unidentified materials as unknown. |
When Two Seals Have the Same Nominal Diameter
Consider two assemblies described as the same shaft size. One may have a different working length or a seat with a different mounting arrangement. Both may slide onto the shaft, yet only one may match the pump’s axial space and seat recess. This is an illustrative comparison, not a claim that either assembly is suitable for your pump. Send the complete dimension set before treating a model cross-reference as a confirmed replacement.Photograph the Parts Before Discarding the Old Seal
Take one photograph of the complete rotating assembly, one of the stationary seat from each side, and one showing the seat recess in the housing. Put a ruler beside the parts for scale, but provide measured dimensions separately. Include any visible markings and identify which parts came from the same pump; mixing photographs from different repairs can make an otherwise useful comparison misleading. For a quotation, send the worksheet details and photographs with the quantity required. Where the installation drawing and removed seal disagree, highlight the difference so the proposed replacement can be checked against the pump arrangement.Replacement References and Compatibility
Our existing product cross-reference lists John Crane Type 2100, AES B05, Flowserve 140, Sterling 540 and VULCAN 14DIN. Treat these as starting points for identification: seat variants, working lengths and material specifications must be checked for the actual pump. This listing describes a replacement option; the reference names do not establish original-brand manufacture or approval.Request a Type 2100 Seal Quotation
Please provide the pump manufacturer and model, existing seal reference, shaft diameter, installation drawing or dimensions, clear photographs of both seal faces and the stationary seat, liquid and concentration, temperature, seal-chamber pressure, operating speed and quantity. Include the current face and elastomer materials if known. Send your Type 2100 seal details for a quotation, or compare other models in our John Crane replacement seal selection guide and pump mechanical seal range.Frequently Asked Questions
Is the same shaft diameter enough to select a replacement?
No. Check the working length, stationary seat dimensions, rotating assembly clearance and materials as well as shaft diameter.Can every listed elastomer use the full temperature range?
No. Suitability depends on the specific elastomer grade, liquid and operating conditions. Request confirmation for the proposed combination.What should I send if the old seal has no readable model number?
Send photographs, measured shaft and seat dimensions, the installation length and pump information. Include a drawing where available so the replacement can be checked before supply.
