Eagle burgmann type BT-AR water pump mechanical seal

  • Replacement of Burgmann BT-AR, John crane PR/DR, AES B01, Flowserve 118, Roten 37B/L5, Sterling BT, VULCAN 18
Facebook
Twitter
LinkedIn

Description:

Equivalent to Burgmann BT-AR, used in water pump/submersible motors/pumps

Operating Limits:

  • Temperature:-10-120℃
  • Speed: 10m/s
  • Pressure: 5bar
  • Standard size: 6mm-60mm

Materials:

  • Seal ring: Car,Sic
  • Secondary seal: NBR,EPDM,Viton etc.
  • Spring and metal parts:304,316
Drawing of Eagle burgmann type BT-AR water pump mechanical seal

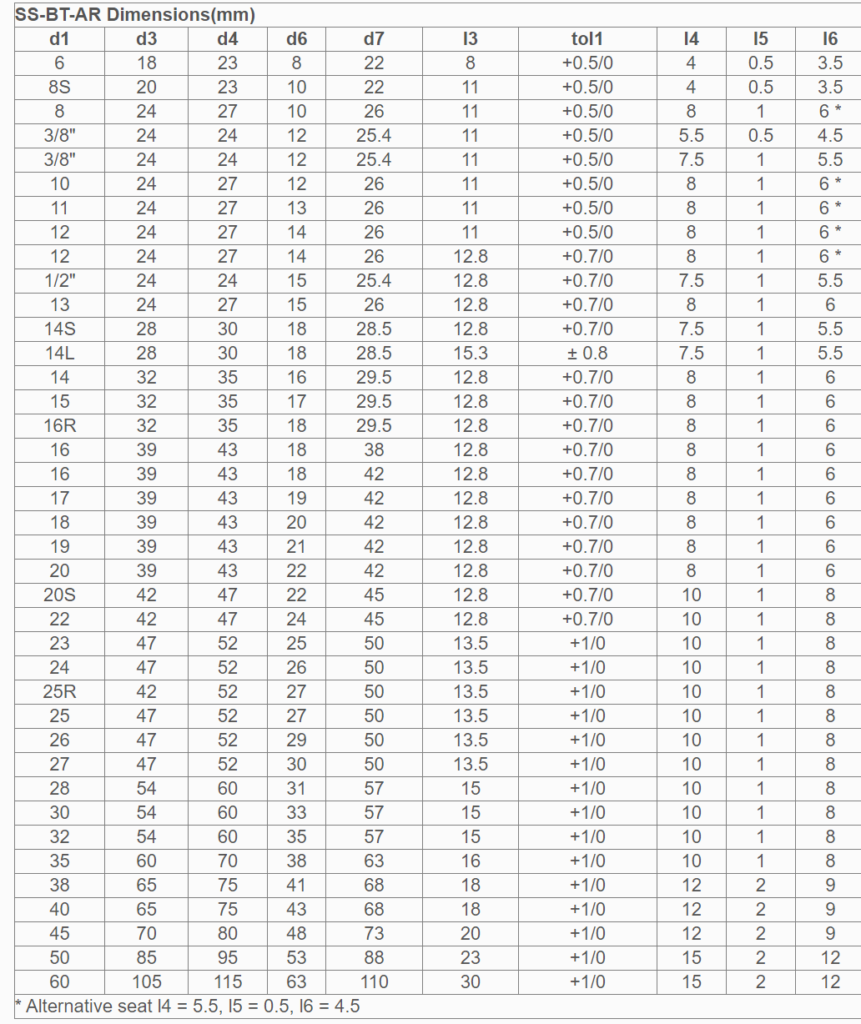

Size table of Eagle burgmann type BT-AR water pump mechanical seal

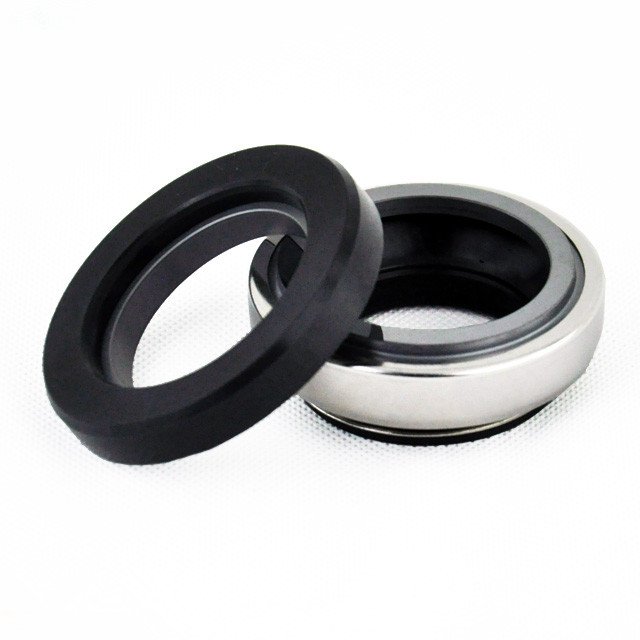

Eagle burgmann type BT-AR water pump mechanical seal front view

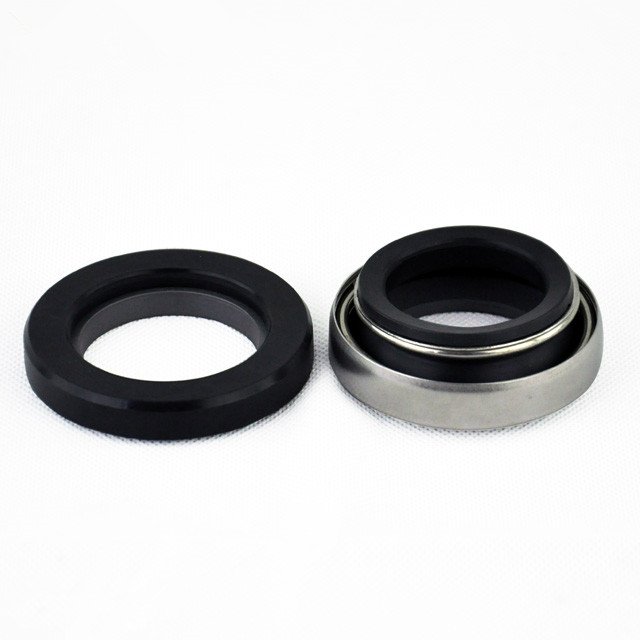

Eagle burgmann type BT-AR water pump mechanical seal right view

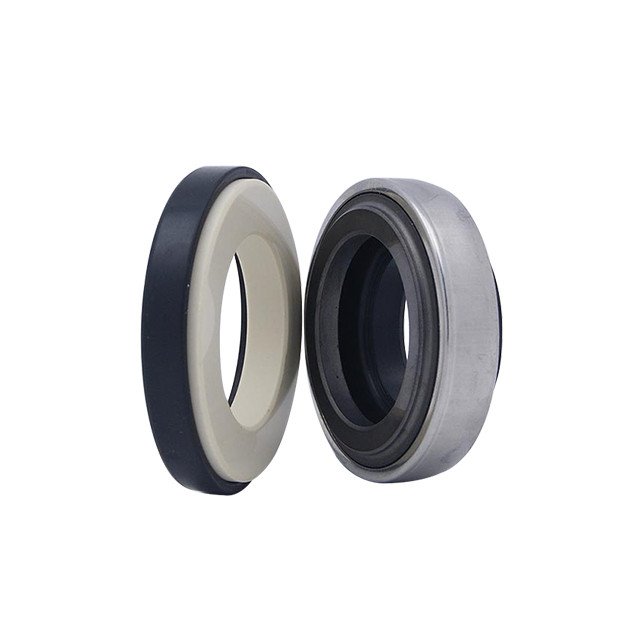

Eagle burgmann type BT-AR water pump mechanical seal

Some others you may like

Start with the BT-AR Fitting Dimensions

A replacement seal needs more than a matching model name. Compare the shaft diameter, stationary seat dimensions and available working length with the drawing on this page. Checking these measurements together helps identify a suitable BT-AR configuration before ordering.

Choose the Contact Materials as a Set

This range lists carbon and silicon carbide seal-ring options, NBR, EPDM and Viton secondary seals, and 304 or 316 metal parts. Consider the face material, elastomer and metal grade together against the pumped liquid and operating temperature, rather than selecting each component in isolation.

Check the Pump Duty Before Replacement

Use the listed limits of -10 to 120°C, 5 bar and 10 m/s as an initial screening reference. The suitability of a particular material combination still depends on the liquid and actual pump duty; the maximum values should not be treated as a guarantee that every combination can operate at all three limits simultaneously.

Make the Replacement Enquiry Specific

For a clearer BT-AR enquiry, include the pump model, shaft size, liquid, temperature and pressure. Add photographs of the removed seal and measurements of the stationary seat and working length when available. These details help distinguish similar-looking replacements and make the required configuration easier to discuss.
