Eagle burgmann LP-D-SA-70 mechanical seal in paper making industry

  • Replacement of Eagle burgmann LP-D-SA-70 mechanical seal, cartridge type, used in paper making industry
Facebook
Twitter
LinkedIn

Description:

Equivalent to Eagle burgmann LP-D-SA-70 safematic mechanical seal , Double cartridge seal, Strong corrosion resistance

Operating Limits:

  • Temperature:-40—200℃
  • Speed: 15m/s
  • Pressure: 20bar
  • Standard size: 110mm

Materials:

  • Seal ring: Car,Sic,Ssic,TC
  • Secondary seal: NBR,EPDM,Viton etc.
  • Spring and metal parts:304,316,HAST.C

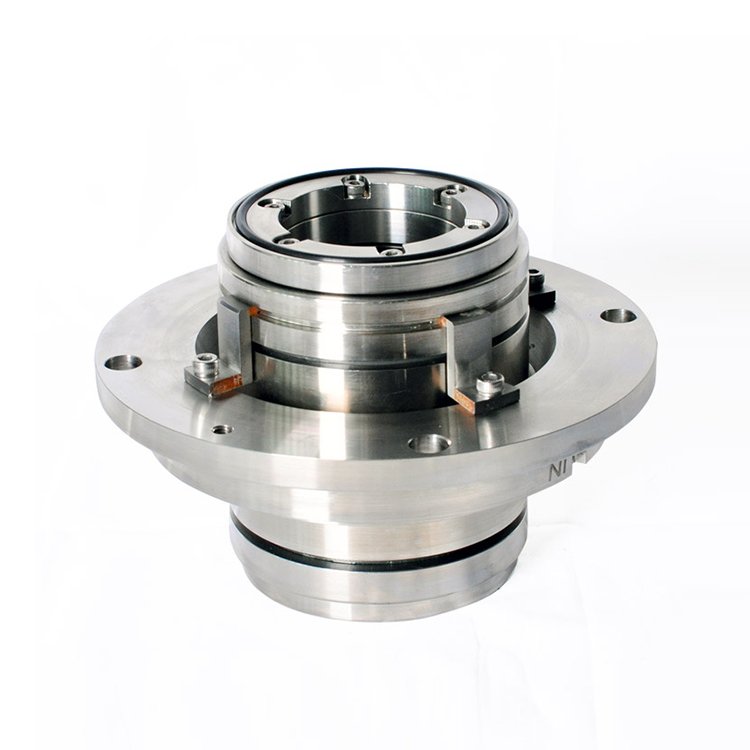

Eagle burgmann LP-D-SA-70 mechanical seal in paper making industry front view

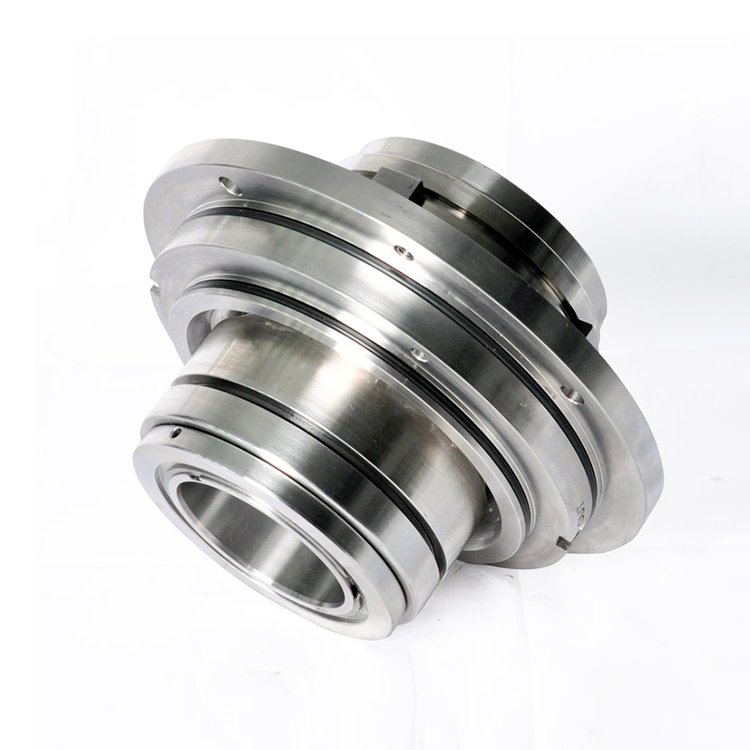

Eagle burgmann LP-D-SA-70 mechanical seal in paper making industry left view

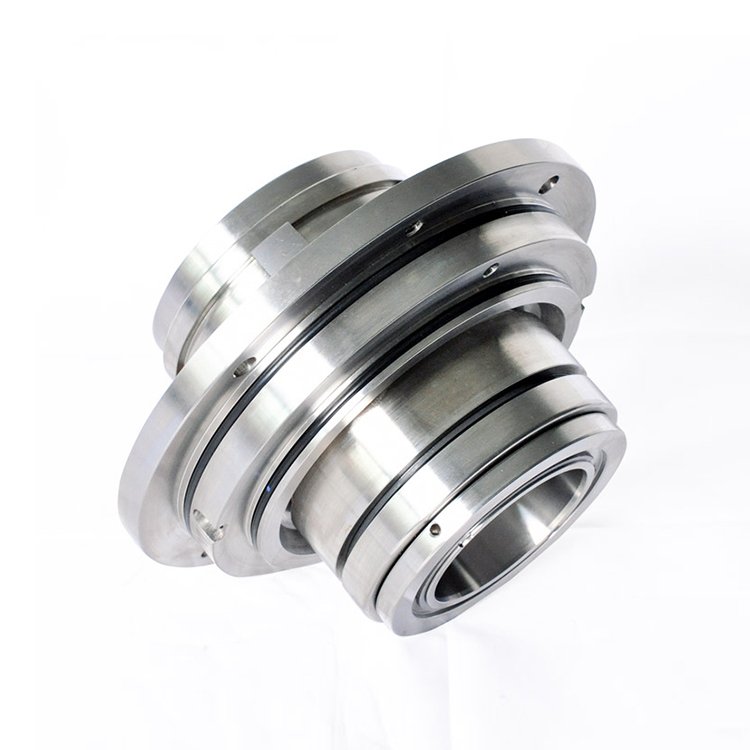

Eagle burgmann LP-D-SA-70 mechanical seal in paper making industry right view

Some others you may like

Replacement Details Beyond the Model Code

For an LP-D-SA-70 replacement enquiry, include the old seal drawing or clear photographs alongside the pump model. Shaft or sleeve diameter, gland fixing points, available axial space and pipe connections provide a practical basis for checking the proposed cartridge against your installation.

Pulp Conditions Shape the Material Choice

A seal handling fibre stock may face different conditions from one handling process water. Share the pulp consistency, temperature, chemical exposure and cleaning routine so the face and elastomer options listed for this seal can be assessed for the actual duty. Material selection should reflect the complete operating cycle.

A Double Seal Needs a Matched Support System

This LP-D-SA-70 replacement is presented as a double cartridge seal. Include details of the existing seal support circuit when requesting a quotation: fluid type, supply pressure, return arrangement and connection positions. These details help establish whether the proposed seal and the mill's support system can work together.

Clear Specifications for the Next Shutdown

Keep the confirmed drawing, material combination and pump equipment tag together in the spare-part record. For mills with several similar pumps, this gives each replacement enquiry a clear reference and helps maintenance teams distinguish cartridges that share a model designation but have different installation requirements.
