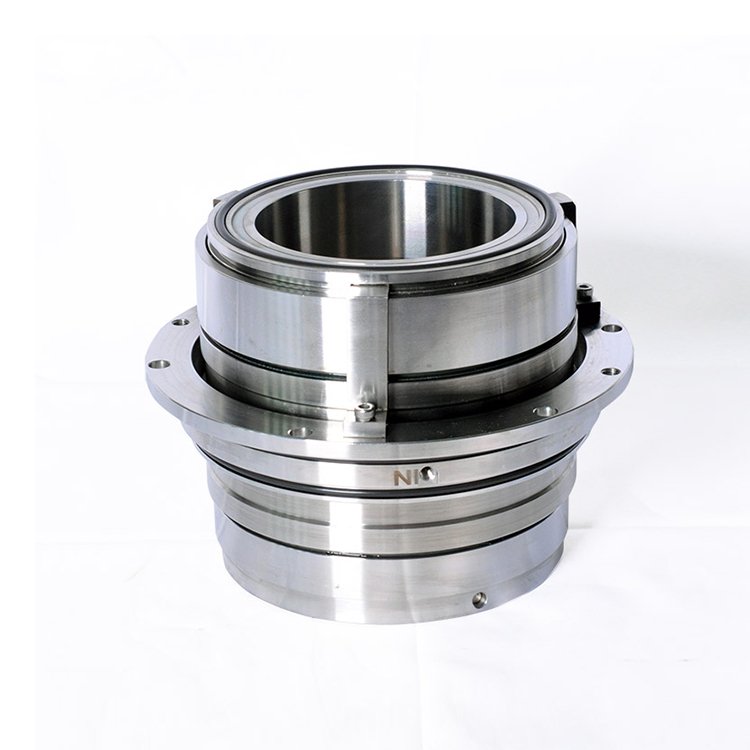

John crane SAF-110-QREG mechanical seal in paper making industry front viewJohn crane SAF-110-QREG mechanical seal in paper making industry front view

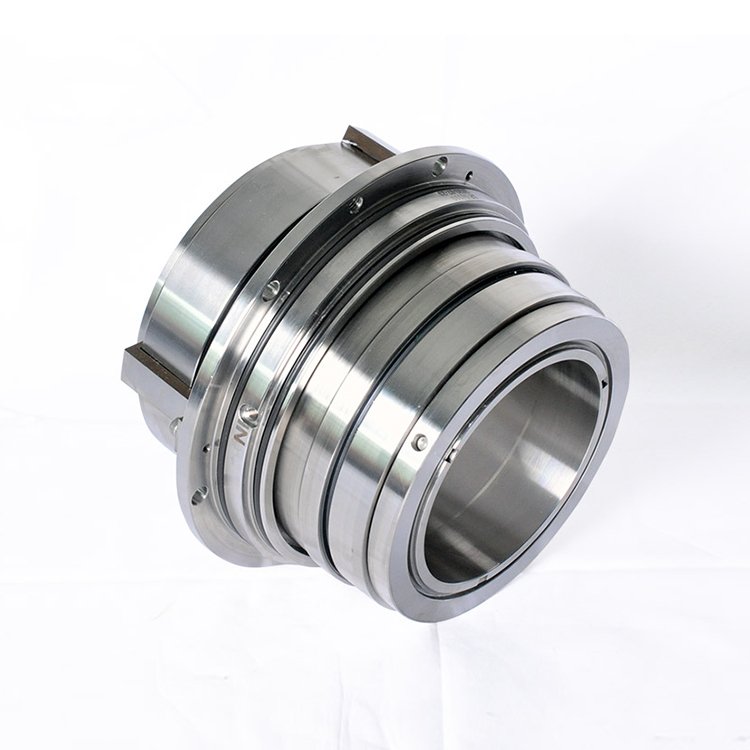

SAF-110-QREG mechanical sealSAF-110-QREG mechanical seal

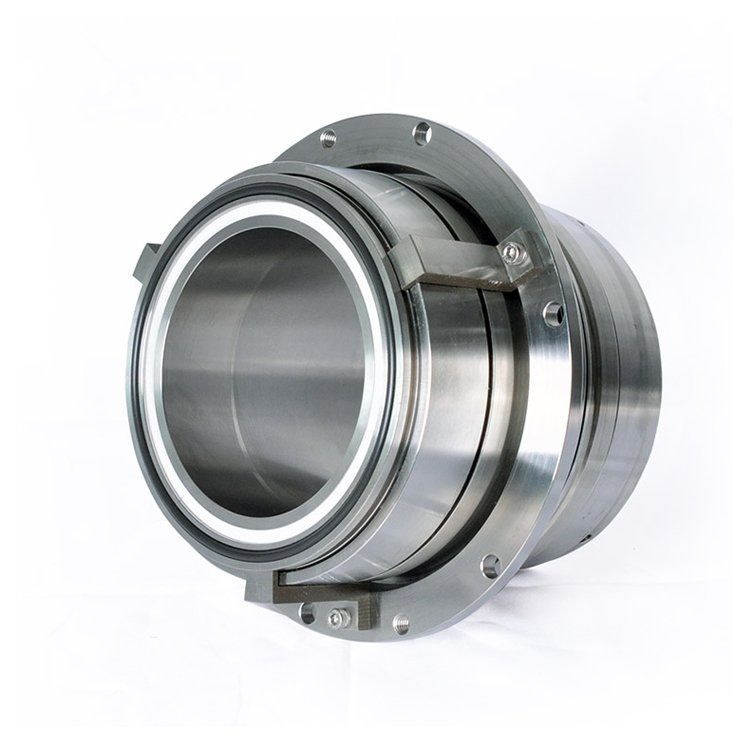

John crane SAF-110-QREG mechanical seal in paper making industry right viewJohn crane SAF-110-QREG mechanical seal in paper making industry right view

John crane SAF-110-QREG mechanical seal in paper making industry

  • Replacement of John crane SAF-110-QREG safematic mechanical seal, cartridge type
Facebook
Twitter
LinkedIn

Description:

Equivalent to John crane SAF-110-QREG mechanical seal, used in paper making industry, cartridge type, double seal, Strong corrosion resistance

Operating Limits:

  • Temperature:-40—200℃
  • Speed: 15m/s
  • Pressure: 20bar
  • Shaft diameter: 110mm

Materials:

  • Seal ring: Car,Sic,Ssic,TC
  • Secondary seal: NBR,EPDM,Viton etc.
  • Spring and metal parts:304,316,HAST.C
John crane SAF-110-QREG mechanical seal in paper making industry front view
John crane SAF-110-QREG mechanical seal in paper making industry right view

Some others you may like

Check the 110 mm Fit Beyond Shaft Size

The SAF-110-QREG reference and 110 mm shaft diameter are useful starting points for a replacement enquiry. Include the existing seal drawing, sleeve dimensions, gland fixing pattern and available axial space so the cartridge can be checked against the actual pump installation.

Select Materials Around the Stock at the Seal

A paper mill can handle very different fluids at different process stages. Tell us the stock temperature, pH, solids content and cleaning chemicals when discussing the listed face and elastomer options. A material combination should follow the duty at the seal chamber, rather than a general description of the mill.

Include the Double-Seal Connections in the Review

The cartridge is only one part of a double-seal installation. Send photographs of the existing pipe connections and details of the auxiliary liquid, pressure and circulation arrangement with your enquiry. These details help identify connection or support-system differences before a replacement is selected.

Keep the SAF-110 Specification Ready for the Next Shutdown

For a planned spare, record the pump tag, full seal designation, confirmed drawing and selected materials together. Add clear photographs of the removed cartridge and its connections. This gives the next replacement enquiry a consistent reference, even when several similar seals are used across the paper machine.
