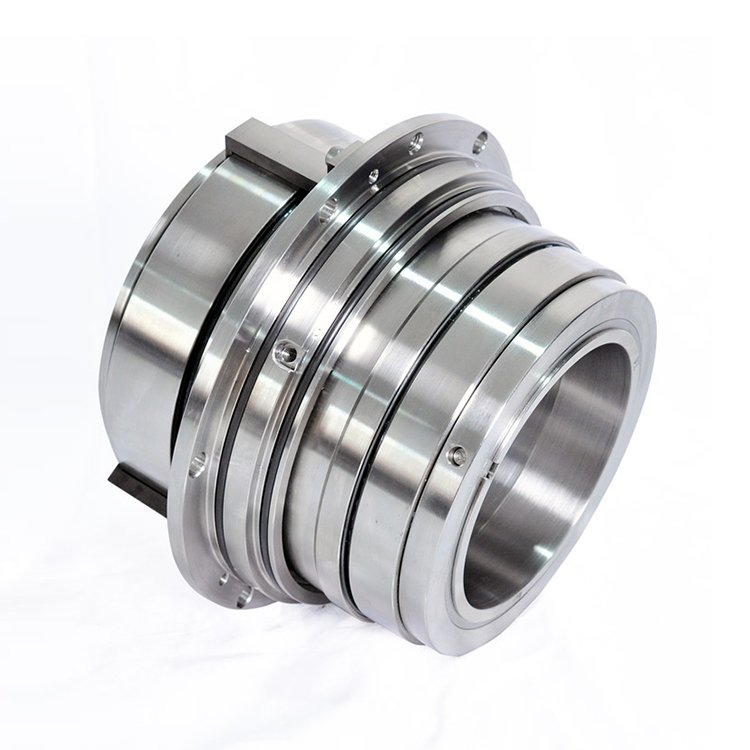

Eagle burgmann LP-D-SA-110 mechanical seal for screen right viewEagle burgmann LP-D-SA-110 mechanical seal for screen right view

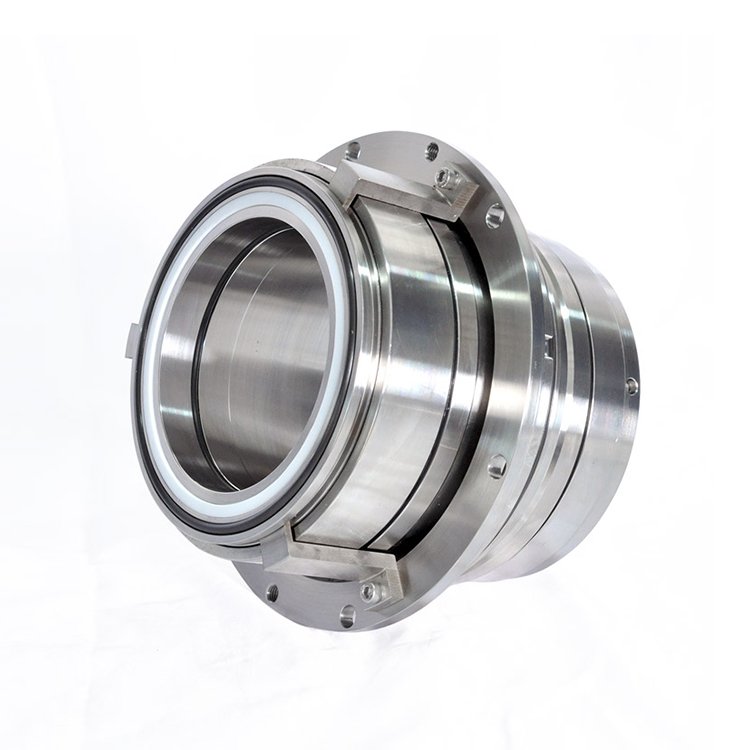

Eagle burgmann LP-D-SA-110 mechanical seal for screen left viewEagle burgmann LP-D-SA-110 mechanical seal for screen left view

Eagle burgmann LP-D-SA-110 mechanical seal for screen

  • Replacement of Eagle burgmann LP-D-SA-110 mechanical seal, cartridge type, used in paper making industry
Facebook
Twitter
LinkedIn

Description:

Equivalent to Eagle burgmann LP-D-SA-110 safematic mechanical seal, Double cartridge seal, Strong corrosion resistance

Operating Limits:

  • Temperature:-40—200℃
  • Speed: 15m/s
  • Pressure: 20bar
  • Standard size: 110mm

Materials:

  • Seal ring: Car,Sic,Ssic,TC
  • Secondary seal: NBR,EPDM,Viton etc.
  • Spring and metal parts:304,316,HAST.C
Eagle burgmann LP-D-SA-110 mechanical seal for screen front view
Eagle burgmann LP-D-SA-110 mechanical seal for screen right view
Eagle burgmann LP-D-SA-110 mechanical seal for screen left view

Some others you may like

A 110 mm Size Is Only the Starting Point

For an LP-D-SA-110 replacement, compare the existing cartridge with the screen shaft, gland mounting, axial space and pipe connections. Send an assembly drawing and photos of the removed seal with your inquiry so the fit can be reviewed before an order is placed.

Choose Faces Around the Stock and Cleaning Cycle

Paper stock and cleaning fluids can place different demands on the same seal. This model lists carbon, silicon carbide and tungsten carbide face options, with several secondary seal materials. Include stock composition, cleaning chemicals and operating temperature in your inquiry to narrow down the material combination.

Treat the Double Seal and Its Supply as One System

The LP-D-SA-110 is presented here as a double cartridge seal. When planning a replacement, record the existing support fluid, supply pressure and connection layout alongside the seal dimensions. These details help define the replacement specification and the checks needed before the screen returns to service.

Make the Next Replacement Easier to Specify

Keep the confirmed drawing, face pairing, elastomer grade and equipment tag together in your spare seal record. For screens using similar cartridges, add connection photos and the full LP-D-SA-110 reference. A clear record gives purchasing and maintenance a shared specification for the next shutdown.
